RS-750 42mm DC6V 12V 24V 20000rpm 5W-90W High Torque Brushed dc Electric Motor
Motor type:RS-750 brushed dc motor
Motor case diameter: 42 mm
Motor case length: 59.5mm
Motor case shape: round motor housing
Brush type: carbon brush
Motor type: single brush permanent magnet dc electric motor
Driveshaft shape: D, Round, knurling, screw thread, Customization
Bearing type: bushing/ball bearing
Customizations Service:
Shaft Length Direction of Rotation
Technical Parameters Cables and Connectors
Encoder and other accessories
Typically Applications:Cordless Power Tools /Air Pump / Vacuum Cleaner/Circular Saw/Power Seat
RS-750 42mm dc Brushed Electric Motor Parameter
| Model | Voltage | No load | At Maximum Efficiency | Stall | ||||||
| Range | Rated | Speed | Current | Speed | Current | Torque | P.out | Torque | Current | |
| V | R/min | A | R/min | A | g-cm | W | g-cm | A | ||
| RS-750SM-8027 | 6-12v | 12v | 22500 | 2.30 | 19300 | 14.4 | 620 | 123 | 4550 | 90.0 |
| RS-750SM-8523 | 4.8-9.6V | 6V | 13200 | 1.95 | 11400 | 12.5 | 473 | 55.5 | 3500 | 80.0 |
| RS-750SM-3570 | 12-30V | 24V | 9200 | 0.32 | 7900 | 1.96 | 420 | 34 | 3000 | 12 |
| RS-750-7032 | 9-15V | 12 | 15000 | 1.79 | 12671 | 7.52 | 496 | 64.5 | 4010 | 55.6 |
Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement. | ||||||||||

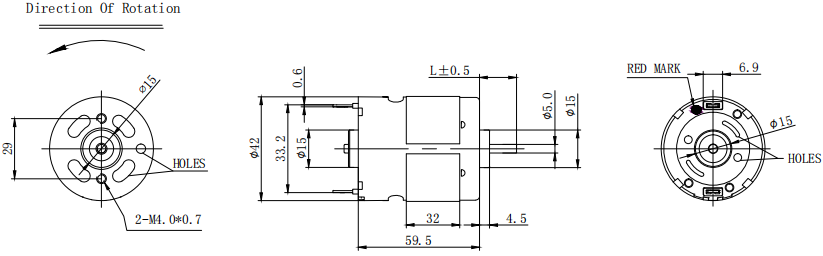

RS-750 42mm dc Brushed Electric Motor 2D Drawing
Model Number: RS-750
|- Shell Stator Size : Φ42* L 59.5mm(Φ 2.637 inch * 2.34 inch)
|- Shaft : Φ5mm(0.197 inch), screw lead, D shape, etc.
|- Shaft Length:L±0.5mm (Custom Option)|-Motor Diameter:32mm
|-Fixed Aperture:M4.0*0.7mm
|-Step Height: about 4.5mm
|-Step diameter: about 15mm
|-Distance between two fixed aperture:29mm
Magnetic Ring Length:32mm
Custom RS-750 Popular Types
RS-750 for Grinding /Buffering Plate
Wide Range of Applications
Our high-performance DC motors are versatile and suitable for a variety of applications, including but not limited to:
Consumer electronics: USB fans, game machines, car DVD/CD players, cameras, digital cameras, and toys.
Home and office appliances: automatic vendor machines, massagers, automatic curtains, soap dispensers, soap containers, air-perfume spray machines, and automatic sensing bins.
Industrial and commercial equipment: money counters, caution lights, juice machines, aero models, information and communication devices, and cosmetic tools.
|
|
