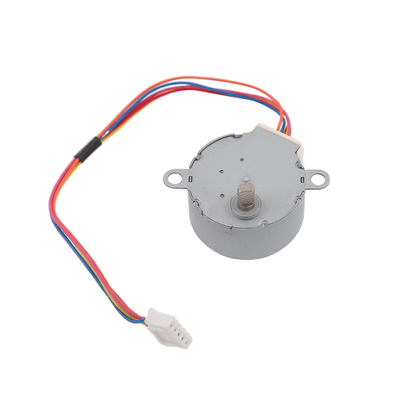

35BYJ412 4 Phase Motors Miniature Stepper 12V High Torque DC Motor For Camera Printer

The 35BYJ412 stepper motor is primarily designed for applications in sanitary ware, such as thermostatic valves, speed-regulated hot water faucets, and automatic control systems for water temperature and flow.Its precision and reliability make it an ideal choice for these applications. Beyond sanitary ware, this motor is also suitable for other fields requiring precise control. Thanks to its open-loop control capability and low-cost position control, it is widely used in areas such as gas control systems, water purifier valves, instruments, and other automated precision control systems. To meet diverse customer needs, the external wiring can be customized with various types and lengths of connecting lines, including FPC and FFC options. Additionally, the output part can be adapted to different mechanisms, such as gears, pulleys, V-grooves, and turbine screws, ensuring compatibility with a wide range of applications. With over 20 years of experience in stepper motor design, development, and production, Lihua Motor is equipped to provide customized product development and auxiliary design tailored to your specific requirements. We are committed to meeting customer needs with innovative solutions and high-quality products.

35BYJ412 4 Phase Motors Miniature Stepper 5 Wires Datasheet and Size

25BYJ412 Stepper Motor Customization options:

Model .: 25BYJ46 Stepper Motor

Resistance:30 mΩ ± 10%/ phase

Gear ratio: 16:1 / 25:1 / 32:1 / 48.8:1 / 64:1 / 85:1

Current Per Phase:400 mA/phase

No Load Starting Frequency:350 pps

No Load Response Frequency:550 pps

Insulation Resistance:600 V AC for One Second

Insulation Resistance:10MΩ (DC 500 V)

Operating Temperature Range:-0~+ 45 ℃

Customizable items:

Voltage:5~24V; gear ratio, gear material, output shaft design ,end cover customizable

Type of Fixture Cover

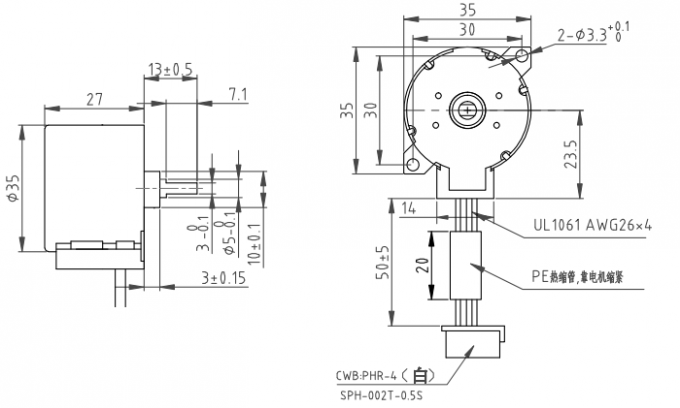

The regular models are shown in the figure, and the special sizes can be customized.

35BYJ412 4-Phase 5-Wire 35-step Gear Motor DC 12V Stepper Motor Reducer Motor Low Noise High Torque Forward and Reverse DC Gear Motor

Specifications:

Model: 35BYJ46

Product name: 35mm step gear motor

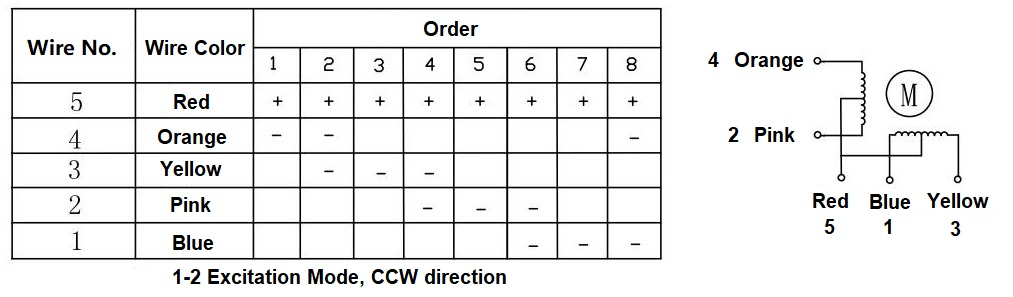

Wiring: four phase five lines (red line is the common end, blue/pink/yellow/orange line is ABCD respectively

Resistance value: The resistance value between the common end and any line is 31.2 ohms

The resistance of any two lines of ABCD is 62.4 Ohm

Rated voltage: DC 12 volts

Line length: 45 cm

Features: low noise, high torque, reversible

Common uses: intelligent toilet, toilet, body cleaner, air circulation fan, intelligent fan etc

Note: This type of motor requires a special controller/drive board to drive.

Note:

1.Due to the light and screen difference, the item's color may be slightly different from the pictures.

2.Please allow 1mm-1cm differences due to manual measurement.

Technical Features & Application Highlights

The 35mm permanent magnet (PM) stepper motor is a highly efficient and precise motor designed for a wide range of applications. Below are its key technical features and application highlights:

Technical Features

• Winding Options: Available in bipolar configurations for versatile performance.

• Maintenance-Free: Brushless design ensures long-lasting operation with minimal upkeep.

• Cost-Effective: Compact design reduces integration costs while maintaining high performance.

• Digitally Controlled: Easy to interface with microprocessors for seamless integration.

• Open-Loop Control: No encoders required, simplifying system design and reducing costs.

Application Highlights

1. HVAC/R Valve Actuation:

   • Provides precise control for valve positioning in heating, ventilation, air conditioning, and refrigeration systems.

2. Office Automation:

   • Used in printers, copiers, and data storage devices for reliable and maintenance-free operation.

3. Medical Devices:

   • Powers saliva analyzers and hematology analyzers, ensuring accurate sample mixing and movement for reliable diagnostic results.

4. Robotics & Industrial Automation:

   • Enables precise motion control in robotic arms, welding machines, and automated systems.

5. Telecommunications:

   • Used in antenna positioning systems for accurate alignment and signal optimization.

6. Smart Security Products:

   • Integrated into security doors and automatic sensor doors for smooth movement and precise positioning.

7. Fiber Optic Fusion Splicers:

   • Controls the placement and alignment of optical fibers, ensuring high precision in fusion splicing.

8. Digital Electronics:

   • Powers autofocus cameras, smart bracelets, and other devices requiring smooth motion and precise positioning.

Guang Dong Lihua Mechatronics Co., Ltd.(Lihua Motor) was founded in May 2003, formerly Shen Zhen Hua Chuang Sheng Motor Co., Ltd.  (HCS Motors)

In order to expand its business, it relocated from Shenzhen to Humen Town (Dongguan City) in October 2017. Lihua is a manufacturer of high-quality DC motors integrates professional development, production and sales, offering a wide range of DC motors, including brushed and brushless motors, geared motors,stepper motor. We has been at the forefront of motor manufacturing and customizing for 20 years, consistently delivering high-performing and reliable products to clients worldwide.

These motors are designed for various applications, including industrial equipment, medical devices, robotics, automotive systems, motor vehicle and more. We also provides Customized DC Motor Solutions to meet specific customer needs.
