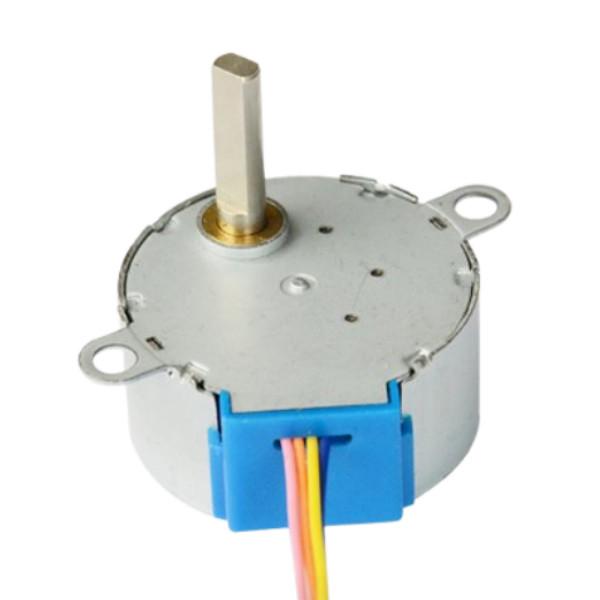

35BYJ46 4 Phase Stepper Motor 12 Volt DC Electric Motor Air Conditioner Fan Motor

Introducing the 35BYJ46 Stepper Motor 12VDC, a highly adaptable and customizable solution designed for precise control in automation, robotics, and beyond. This motor offers a wide range of customization options, including adjustable voltage, wiring configurations, installation hole patterns, and gear setups, making it an ideal choice for diverse applications.

The 35BYJ46 stepper motor is renowned for its versatility and high performance, making it a popular choice in fields such as robotics, automation, and precision positioning. With an operating voltage range of 3V to 24V, it provides flexibility to suit various power supply requirements, ensuring compatibility with a wide array of projects.

Whether you're building advanced robotic systems, automating industrial processes, or designing precision-driven devices, the 35BYJ46 stepper motor delivers reliable performance and adaptability to meet your needs.

35BYJ46 4 Phase Motors Miniature Stepper 5 Wires Datasheet and Size

35BYJ46 Stepper Motor Customization options

Model : 35BYJ46 Stepper
Motor Voltage: 3~24V
Phase: 2, 4
Resistance: 10~600Ω
Speed: 1~20rpm
Torque: 100gf.cm~1500gf.cm
Reduction Rate: 1/85, 1/42.5, 1/127
Connector: 4pin, 5pin; 1.25mm/1.5mm/2.0mm/2.5mm
Wire Length: 40mm~1000mm
Step Angle: 3.75°, 7.5°, 15°
Resistance:50 mΩ ± 7%/ phase
Gear ratio: 16:1 / 25:1 / 32:1 / 48.8:1 / 64:1 / 85:1

Max staring pulse phase:600 pps
Max slewing pulse rate:700 pps
Insulation Resistance:50MΩ (DC 500 V)
Operating Temperature Range:-0~+ 45 ℃
Customizable items:
Voltage:5~24V; gear ratio, gear material, output shaft design ,end cover customizable

Type of Fixture Cover

The regular models are shown in the figure, and the special sizes can be customized.

35BYJ46 Stepper Motor Application

The 35BYJ46 micro motor is widely used across various fields, including home appliances, industrial control, and automation equipment.

Applications in Home Appliances

In the home appliance sector, the 35BYJ46 micro motor is commonly used in devices such as air conditioning fans, electric fans, and DC inverter tower fans. It enhances the precision of wind control and extends the lifespan of these devices. Additionally, it is suitable for:

• Microwave ovens and ovens: Ensures reliable and precise operation.

• Smart toilets and water heaters: Provides durable and efficient performance.

• Air purifiers and sanitary ware: Offers quiet and long-lasting operation.

• Security monitoring devices and PTZ cameras: Delivers smooth and accurate motion control.

• Robots and projectors: Ensures precise positioning and movement.

The motor is known for its ease of operation, simple control, high-temperature resistance, long lifespan, anti-interference capability, and low noise levels, making it a reliable choice for household applications.

Applications in Industrial Control & Automation

In industrial control and automation, the 35BYJ46 micro motor excels in precision and reliability. It is widely used in:

• Monitors and electronic instruments: Ensures accurate and stable performance.

• Plastic injection molding and molds: Provides consistent and efficient operation.

• Connecting wires and industrial machinery: Delivers durable and high-torque performance.

Guang Dong Lihua Mechatronics Co., Ltd.(Lihua Motor) was founded in May 2003, formerly Shen Zhen Hua Chuang Sheng Motor Co., Ltd.  (HCS Motors)

In order to expand its business, it relocated from Shenzhen to Humen Town (Dongguan City) in October 2017. Lihua is a manufacturer of high-quality DC motors integrates professional development, production and sales, offering a wide range of DC motors, including brushed and brushless motors, geared motors,stepper motor. We has been at the forefront of motor manufacturing and customizing for 20 years, consistently delivering high-performing and reliable products to clients worldwide.

These motors are designed for various applications, including industrial equipment, medical devices, robotics, automotive systems, motor vehicle and more. We also provides Customized DC Motor Solutions to meet specific customer needs.
