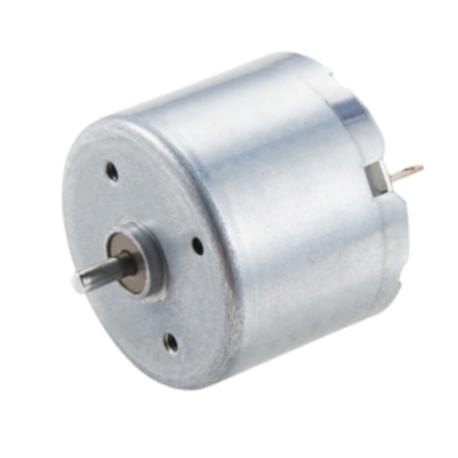

RF-330TA-07800 Motor Micro Brushed DC Technical Parameter

•

  • Motor voltage: 1.5V-6V
  • Motor height: 20.1mm
  • Motor diameter: 24.4mm Max
  • Step Height: about 1.4mm
  • Step diameter: about 6.4mm
  • Fixed aperture: 2mm
  • Motor shaft diameter: 2mm
  • Motor shaft length: 6mm, 10mm, 22mm, 15mm

  • Brush Type: Metal brushes
  • Customization Service:Voltage, speed,torque and current can be custom.

  • RF-330 Motor DC Typical Custom Types

• Model: RF-330TK-07800
  Motor diameter:24.4mm Max
  Motor height:20.1mm
  Output shaft diameter:1.5mm/2.0mm
  Output shaft length:10mm
  Weight:30g
  Test data:
  Voltage: DC4V No-load current:6mA No-load speed:2300RPM
  Voltage: DC5V No-load current:12mA No-load speed:2960RPM
  Voltage: DC6V No-load current:20mA No-load speed:3460RPM
• Note: This motor is low speed and low current motor, it's torque is also very small, it is designed at low speed low current usage

• Model: RF-330TA-13250
  Motor diameter: 24. 4mm
  Motor height: 18mm
  Output shaft diameter: 1.5mm
  Output shaft length: 9mm
  Voltage range: DC 1.2V-6V
  Test data:
  Voltage:2.2V Speed:3200RPM
  Voltage:3.0V Speed:4300RPM
  Voltage:4.5V Speed:6900RPM
  Voltage:5.0V Speed:7500RPM
  Voltage:6.0V Speed:8500RPM

• Model: RF-330T-16170
  Motor diameter: 24.4mm
  Motor height: 1 8mm
  Output shaft diameter: 1.5mm
  Output shaft length: 3.8mm
  Voltage: DC 6V
  Current: 28mA
  Speed: 6400RPM

• Model: RF-330T-11360
  Rated voltage: DC 6.0V
  Suitable voltage: DC 3V-6V

Motor diameter: 24. 3mm
Motor height: 18.20mm
Output shaft diameter: 1.5mm
Output shaft length: 9.0mm
Test data:
Voltage:3.0V Speed:3100RPM
Voltage:4.5V Speed:4700RPM
Voltage:5.0V Speed:5200RPM
Voltage:6.0V Speed:6330RPM

RF-330 Motor Micro Brush DC Electric Motor Data Table

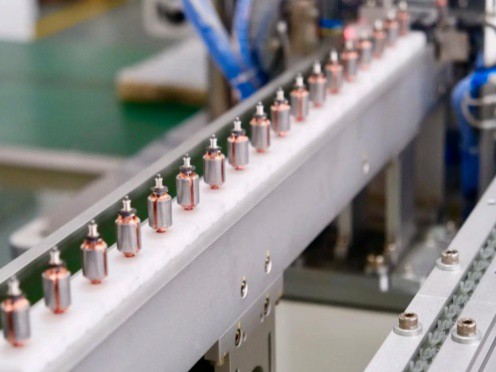

RF-330TA Small DC Motor Production Line

• At Lihua Motor, we take pride in our state-of-the-art production line designed to manufacture the RF-330TA1 small DC motor with precision and efficiency. Our facility is equipped with advanced machinery and automated systems to ensure consistent quality and high performance in every motor produced.

  By adhering to our core principles of "Quality First, Customer First, and Service First," we ensure that every RF-330TA motor meets the highest industry standards. Whether for small-scale projects or large-volume orders, our production line is dedicated to delivering motors that exceed customer expectations.
