| Brand Name : | Lihua Motor/ HCS Motors |

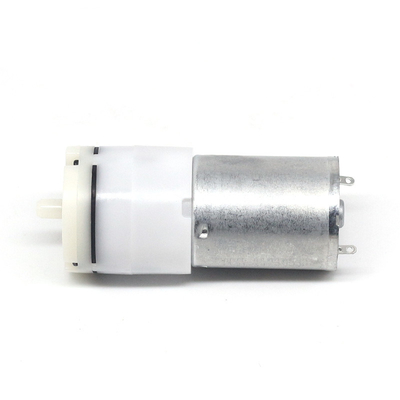

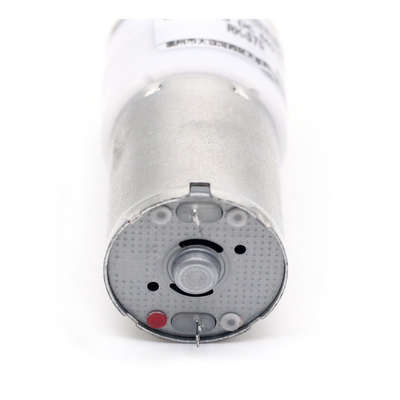

| Model Number : | RF-370CA-15380 For Air Pump |
| Certification : | ISO9001/CE/RoHs/Reach |
| Price : | Negotiation |
| Payment Terms : | L/C,T/T,D/A,D/P,Western Union,MoneyGram |
| Supply Ability : | 30000PCS/Day |
| Delivery Time : | 35-45Days |
1.Model: RF-370CA-15380
2.Motor diameter: 24.4±0.3mm
3.Motor length: 30.8mm (Without Shaft Length)
4.Output shaft diameter: 2mm
5.Output shaft length:6.5±0.2mm or as your request
6.Weight: 50g
7.Rated Volt:12V
8.Operating Voltage Range:11V-13V
9.No-load Speed:5400±432 r/min
10.No-load Current:25mA
11.Rotating Direction:CCW
12.Operating Temperature:-20℃～＋70℃
13.Mechanical Noise:45dB
14.Customization Service:Voltage, speed,torque and current can be custom.
15:Lifetime test with mini pump: 200, 000 cycle (4s on, 1s off)
16.Environment: 25±5℃ / 40%-70%RH
17.Applications:Sweeper, electric toothbrush, intelligent robot, intelligent lock, small household appliances (coffee machine, soybean milk machine, etc.), medical equipment, beauty equipment, adult products, electric tools, massage instrument, electric push rod
18.Motor life :30000times
| Model | Voltage(V) | No Load | Rated Load | Stall | ||||||
| Range | Rated | Speed | Current | Torque | Speed | Current | Output | Torque | Current | |
| R/min | A | m.Nm | R/min | A | W | g.cm | A | |||
| RF-370CA-22170 | 3-6V | 6.0V | 6000 | 0.041 | 2.37 | 5263 | 0.273 | 1.18 | 186 | 1.82 |
| RF-370CA-12560 | 8-12V | 12.0V | 3700 | 0.012 | 1.96 | 3030 | 0.066 | 0.60 | 130 | 0.37 |
| RF-370CA-15370 | 8-12V | 12.0V | 5600 | 0.020 | 2.14 | 4876 | 0.123 | 1.03 | 176 | 0.85 |
Customized product parameter are available upon your request Note:1mNm= 1Ncm = 10.2gcm | ||||||||||
Key Roles and Application Advantages of 370 Micro Motors in Micro Water Pumps
The role of the 370 micro motor in micro water pumps is primarily reflected in providing power, regulating flow and
pressure, and ensuring stable operation. Specifically:
Providing Power:
The 370 micro motor serves as the power source for micro water
pumps. Through the principle of electromagnetic induction, it
generates rotational torque to drive the rotor or impeller inside
the pump, thereby enabling the suction, compression, and discharge
of liquids.
Regulating Flow and Pressure:
The speed and power of the motor can be adjusted through a control
system, allowing for precise control of the pump's flow rate and
pressure. This enables the pump to adapt to different working
scenarios and requirements, improving overall efficiency.
Ensuring Stable Operation:
High-quality 370 micro motors can ensure the long-term stable
operation of the pump, reducing failure rates and maintenance
costs.
Additionally, the characteristics of the 370 micro motor, such as low noise, long lifespan, and cost-effectiveness, make it widely applicable and practical in micro water pumps. For example, the 370 micro diaphragm vacuum pump can be used in devices such as spray disinfectors, coffee machines, water dispensers, water purifiers, and tea brewers, where it performs exceptionally well.
| Product Type: | Small Air Pump | Voltage: | 6V |
|---|---|---|---|
| No Load Current: | 250-600Ma | Max Pressure: | 60-140kPa |
| Air Tightness: | <3mmHg/min (100CC 300mmHg) | Noise: | <62dB(30cm Away) |
| Apply: | Air | Life Test: | 30,000 Cycle (10s On,5s Off) |
| Usageenvironment: | 5-50°C 30-80%RH | Product Net Weight: | 60g |
|
|
