| Brand Name : | Lihua Motor/ HCS Motors |
| Model Number : | RK-500TB-10660 |
| Certification : | ISO9001/CE/RoHs/Reach/IATF16949 |
| Price : | Negotiation |
| Payment Terms : | L/C,T/T,D/A,D/P,Western Union,MoneyGram |
| Supply Ability : | 15000PCS/Day |
| Delivery Time : | 35-45Days |
Motor Type:RF-500TB-10660
Voltage:1V-5V DC
Rated Volt:3V
Speed: 1100±110 RPM
Diameter: 32mm
Stall Torque:13.0 g-cm (min.)
Shaft Diameter: 10.5±0.3mm
Shaft Length:9mm (customizable)
Current (No Load): ≤15mA
Torque: 40mN·mNoise Level <45dB: Ideal for household and office environments.
Wide Temperature Range: Operates efficiently in -20°C to 70°C environments.
Extended Lifespan: Engineered for 5,000+ hours of continuous operation.
Weight: 40
RF-500TB DC Brushed Motor Paramter Reference
Model | Voltage | No Load | At Maximum Efficiency | Stall | |||||
V | Current | Speed | Current | Speed | Torque | Output | Current | Torque | |
A | RPM | A | RPM | g·cm | W | A | g·cm | ||
RF-500TB-19250 | 3 | 0.031 | 3100 | 0.17 | 2617 | 12.55 | 0.34 | 0.92 | 80.52 |
RF-500TB-18280 | 6 | 0.033 | 5640 | 0.22 | 4917 | 14.75 | 0.74 | 1.49 | 115.06 |
RF-500TB-19220Y | 2.7 | 0.036 | 3011 | 0.18 | 2513 | 11.73 | 0.3 | 0.91 | 70.85 |
RF-500TB-20215 | 3 | 0.04 | 3550 | 0.2 | 2965 | 12.46 | 0.38 | 1.01 | 75.61 |
Customized product parameter are available upon your request Note:1mNm= 1Ncm = 10.2gcm | |||||||||
Notes:
1.Motor Body Length:17.5mm
2.Motor Output Shaft Length:L±0.5mm
3.Motor Output Shaft Diameter:2mm
4.Motor Diameter:32mm
5.Fixed Aperture:M2.5*0.45mm
6.Step Height: about 1.9mm
7.Step diameter: about 6.2mm
8.Distance between two fixed aperture:22±0.1mm

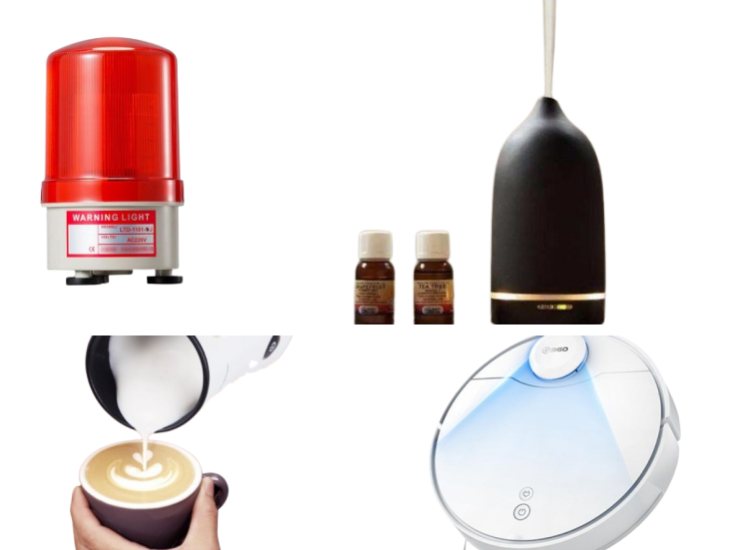

The RF-500TB motor is a compact and high-performance motor designed for a wide range of applications. Below are examples of its use in aroma diffusers, robot vacuum cleaners, warning lights, and milk frothers:
Product | Application Scenario | Function | Typical Motor Parameters | Additional Notes |
Aroma Diffuser | Drives fan or ultrasonic atomizer | Helps disperse fragrance mist evenly | Rated Voltage: 3V–6V Speed: 3000–7000 RPM | Low noise operation, suitable for quiet environments; stable airflow output. |
Robot Vacuum Cleaner | ① Drives side brush ② Main brush roller ③ Vacuum fan | Provides power for sweeping, brushing, and suction | High-speed version: ~8000–10000 RPM; Can be used with gear reduction system | RF-500TB often used for side brush or fan impeller; for main brush, often paired with gearbox. |
Warning Light (Rotating Beacon) | Drives the rotating dome or platform | Creates rotating flashing light effect | 3V–12V, Moderate speed (~3000–5000 RPM), continuous duty motor | Low noise, continuous running capability; torque sufficient to rotate light assembly. |
Milk Frother | Spins the frothing whisk or stirrer head | Creates rich milk foam | High-speed version: 7000–12000 RPM (with light torque) | RF-500 series commonly used in handheld or small frothers; good balance between speed and size. |
|
|
