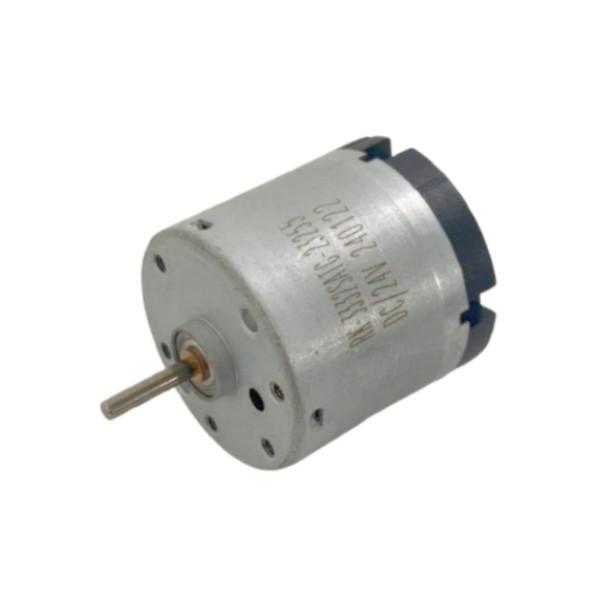

Φ33mm RK-3332 8700RPM 24V Brushed DC Motor High Torque Motor For Window Sweeping

RK-3332 24v DC Motor Specifications / Motor Technical Parameter

Motor Rated Volt:24V

Operating Voltag Range:20v-24v

Rotation:CW /CCW

Operating Temperaure:-20℃ -+70℃

Storage Temperature Range:+30℃ -+80℃

Rated Load Speed:8100±810 r/min

Rated Load Current:550mA

No-laod Speed:160mA

Stall Torque:700g.cm

Starting Voltage:2.5V

Insulation Resistance:10 MΩ

Starting Current:4500mA max (12V)

Weight:89g

Mechanical Noise:60dB max

Maximum Axial Load:20Kgf MAX

This high-performance motor combines advanced materials and precision engineering to deliver reliable operation across various applications, offering exceptional power-to-weight ratio and operational flexibility.

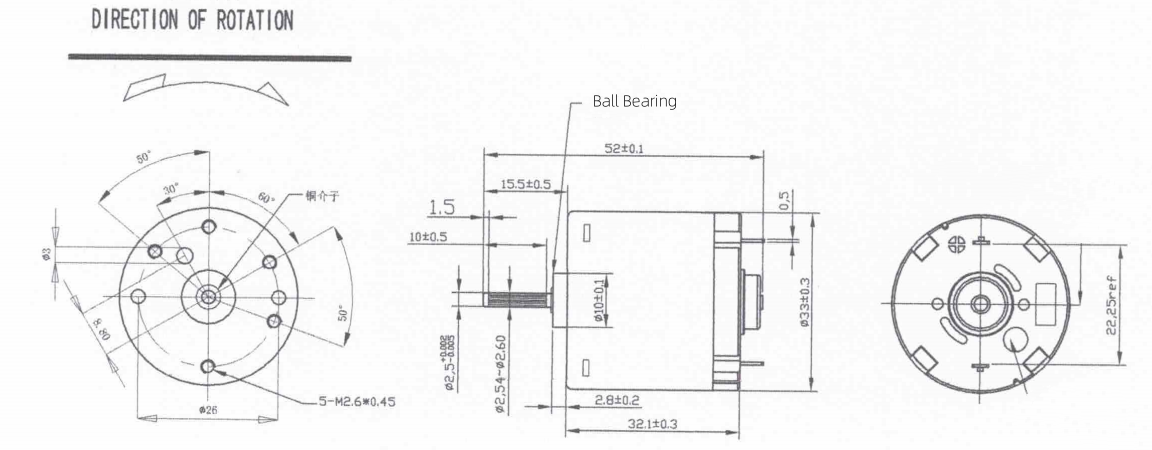

RK3332 Micro Motors Electric Carbon Brushed Dimension/Drawing

Motor case diameter: 33±0.3 mm

Motor case length: 32.1±0.3 mm

Motor case shape: Round motor housing

Brush type: Long life time carbon brushed

Motor type: Single brush permanent magnet dc electric motor

Driveshaft shape: D, O, knurling, screw thread, Customization

Bearing type: bushing/ball bearing

Rotation:CW /CCW

Motor Body Size:33mm*32mm

Length motor aixs : L±0.5mm (L can custom)

3332 motor materials: Full precision dc motor

Construction: Permanent Magnet /Carbon Brushed PM DC Motor

Modern Electric Window Cleaner Drive Motor Technology Analysis

1. Comparison of Main Motor Types

2. Lihua Motor's Innovative Solution: RK-3332 High-Performance Motor

To address traditional DC motor pain points, our RK-3332 brushless motor delivers breakthrough performance:

1. Power & Noise Balance

• 97mNm high torque output (24V rated voltage) for heavy-duty cleaning heads

• Noise ≤60dB (1m distance), 30% quieter than brushed motors

• 300+ hour lifespan (30min work/10min pause cycle)

2. Environmental Adaptability

• Wide temperature range: -20℃~+70℃ for extreme climates

• Moisture resistance: IP54 rating against cleaner corrosion

3. Smart Control Compatibility

• PWM speed control for pressure sensor integration

• Built-in overheating protection

3. Selection Guide

• Home models: RK-3332 + planetary gearbox (50:1) for cost-performance balance

• Commercial models: Dual RK-3332 parallel drive for large windows

• Magnetic designs: Custom worm gearbox for auto-lock safety

4. Extended Technical Services

✔ Free load analysis: Torque calculations based on cleaner weight/window slope
✔ 3D-printed housing adaptation: For unconventional installations
✔ EMC optimization: Minimizes WiFi/Bluetooth interference

[Download RK-3332 Test Report] [Consult Climate Adaptation Solutions]

Note: All data based on standard testing (25±5℃, 40-70%RH). Real-world performance varies with glass surface friction.
