RF-370CA-22170 3V 6V Brushed Electric Motor 3000rpm-6000rpm Electric Motor RoHs

RF-370CA-22170 Metal Brushed Motor Technical Parameter /Specifications

|- Model Number: RF-370CA-22170
|- Shell Stator Size : Φ24.4* L 30.8 mm
|- Shaft : Φ2mm(0.09 inch), D shape, etc.
|- Shaft length free customization
|- Rated Output Power: up to 1.18W
|- Rated Voltage: DC 1.5V -12V
|- Stall Torque: up to 2.37mNm
|- Construction: Permanent Magnet
|- Commutation: Precious Metal Brush
|- Clockwise/counter-clockwise rotation (CW&CCW)

24mm Diameter RF-370CA Brushed Motor Types Table List

24mm RF-370CA-22170 Brushed Electric Motor Drawing /Dimension

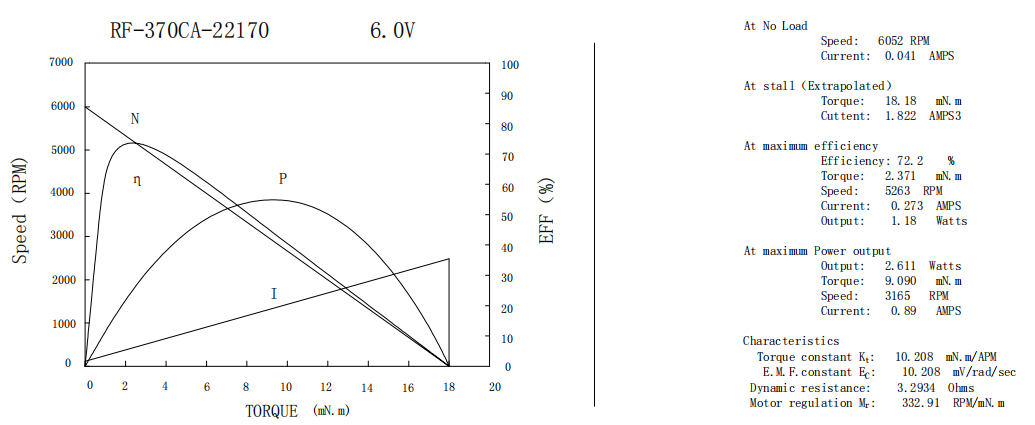

24mm RF-370CA-22170 Brushed Electric Motor TN Curve

Advanced Manufacturing Processes for Precision Micro Motors

1. Rotor Production Line Our rotor manufacturing utilizes cutting-edge automated processes: Precision stamping technology ensures micron-level dimensional accuracy Robotic welding systems guarantee consistent joint integrity Specialized coating application enhances magnetic performance and corrosion resistance Automated cleaning stations remove particulate contaminants to <5μm standards This fully automated line achieves 99.2% dimensional consistency while maintaining 450 units/hour throughput. 2. Stator Assembly System The stator production integrates: Computer-controlled magnetization with ±1% flux density accuracy Vision-guided winding systems ensuring ±0.5° coil alignment In-line electrical testing (Hi-Pot, surge, and LCR measurements) Real-time data tracking with SPC quality control Our system achieves <0.01% defective rate while supporting flexible winding configurations.

3.End Cover Manufacturing Custom end cover solutions include: Dual-material options: Engineering plastics (UL94 V-0 rated) Aluminum alloy (ADC12 die-cast) Integrated bearing press-fit stations (±5μm concentricity) Automated leak testing for sealed units Quick-change tooling supports 15+ cover designs 4.Final Motor Assembly The complete integration process features: Robotic component handling with 0.01mm placement accuracy Automated torque testing (0.1mN·m resolution) Dynamic balance correction (<0.5g·mm/kg) 100% performance validation: No-load current (±2% tolerance) Rated torque verification Acoustic noise profiling

Why Choose Our Manufacturing Process?

• Precision Engineering: Every step of the production process is designed to deliver motors with exceptional accuracy and reliability.

• Efficiency and Scalability: Automation allows us to produce high volumes without compromising on quality, meeting both small and large-scale demands.

• Customization Capabilities: Our flexible production lines can adapt to unique customer requirements, ensuring tailored solutions for every application.

• Quality Assurance: Rigorous inspections and testing at every stage guarantee that only the best products reach our customers.

Applications of Our Micro Motors:
Our precision-engineered micro motors are widely used in industries such as medical devices, robotics, automotive systems, consumer electronics, and industrial automation. Whether you need standard models or fully customized solutions, our advanced manufacturing processes ensure that you receive motors that exceed expectations.

Experience the Future of Micro Motor Manufacturing:
Discover how our innovative production techniques can enhance your products. Contact us today to learn more about our capabilities and how we can support your specific needs. Let’s power your innovations together!

Guang Dong Lihua Mechatronics Co., Ltd.(Lihua Motor) was founded in May 2003, formerly Shen Zhen Hua Chuang Sheng Motor Co., Ltd.  (HCS Motors)

In order to expand its business, it relocated from Shenzhen to Humen Town (Dongguan City) in October 2017. Lihua is a manufacturer of high-quality DC motors integrates professional development, production and sales, offering a wide range of DC motors, including brushed and brushless motors, geared motors,stepper motor. We has been at the forefront of motor manufacturing and customizing for 20 years, consistently delivering high-performing and reliable products to clients worldwide.

These motors are designed for various applications, including industrial equipment, medical devices, robotics, automotive systems, motor vehicle and more. We also provides Customized DC Motor Solutions to meet specific customer needs.
