FF-M20-05320 Small Electric Motor Engine High Speed Motor 10000 Rpm For Mini Pump

Compact Power for Precision Applications
The FF-M20-05320 is an ultra-compact brushed DC motor delivering exceptional speed in a tiny package. With its 5V operation and 10,000 RPM no-load speed, this micro motor is engineered for applications where space is limited but performance can't be compromised.

Key Specifications:
✔ Rated Voltage: 5V DC
✔ No-Load Speed: 10,000 RPM (±500 RPM)
✔ Dimensions: 8×10×15mm (H×D×L)
✔ Shaft Length: 3.5mm (±0.15mm)
✔ Efficient Design: Optimized for low power consumption

Ideal For:

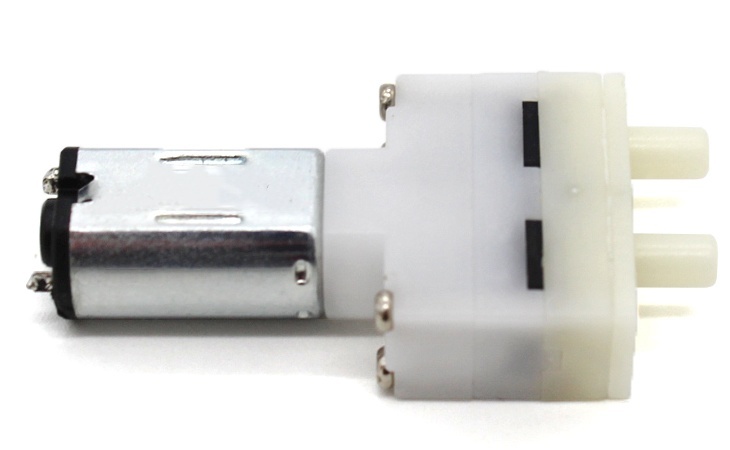

• Portable Devices: Mini pumps, car CD mechanisms

• Personal Care: Electric shavers, grooming tools

• Electronics: MD recorders, precision camera components

FF-M20 Mini Motor Parameter List

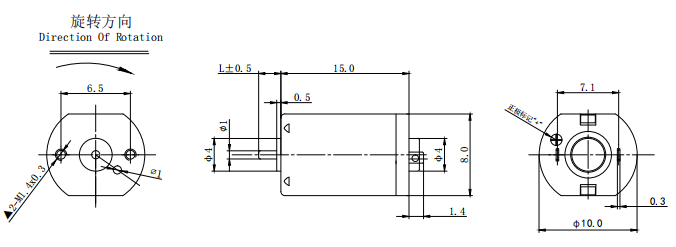

FF-M20 Small Electric Motor Engine High Speed Motor Dimension

Note:

1) Dimension in the drawing can be adjusted acording to customer's requirement.
2) Motor can be designed upon the customer's requirements on performance,
installation, power connection method and motor dimension.
3) Motor can be mounted with varying shape and sizes of eccentric weight, which is
made of iron, brass, or fre-ally to become a vibralion motor.
1g=0.035oz
1inch=25. 4mm
1g.cm=0.098mN.m
10z=28.35g
1mm=0.0394inch
1mNm=10.2g cm

FF-M20 Micro DC Motor: The Compact Powerhouse for Precision Applications

Technical Specifications:

• Rated Voltage: 1.5V DC

• Max Speed: 16,460 RPM

• Current Draw: 0.15A

• Compact Size: 10mm diameter

Key Applications:

1. Smart Consumer Devices

   • Powers automatic door locks with silent operation (With Gearbox M20 Gear Reduction Motor )

   • Drives precision mechanisms in car CD players

   • Enables smooth lens adjustment in compact cameras

2. Personal Care & Lifestyle

   • Ideal for adult products requiring discreet, vibration-free operation

   • Used in electric grooming tools for consistent performance

3. Entertainment Technology

   • Provides reliable motion control for high-end computer peripherals

   • Drives interactive elements in advanced electric toys

4. Security Systems

   • Integrated into smart lock mechanisms for secure access control

5. Medical Device

   • Oximeter

Health care equipment
