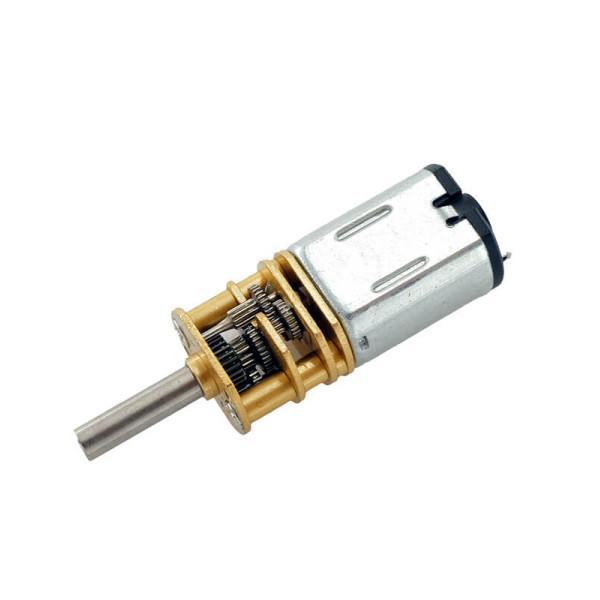

10mm 2.5mm Shaft M20 DC Motor Small Electric Motor With Reduction Gear Drive CE

Meta Description:
Discover our 10mm M20 series micro DC gear motors with 2.5mm shaft - offering 52-185 RPM, 0.22-0.9kg.cm torque & ≤0.4A current. Perfect for robotics, medical devices & automation. CE certified. Custom ratios available.

Single FF-M20 Mini Motor Parameter List

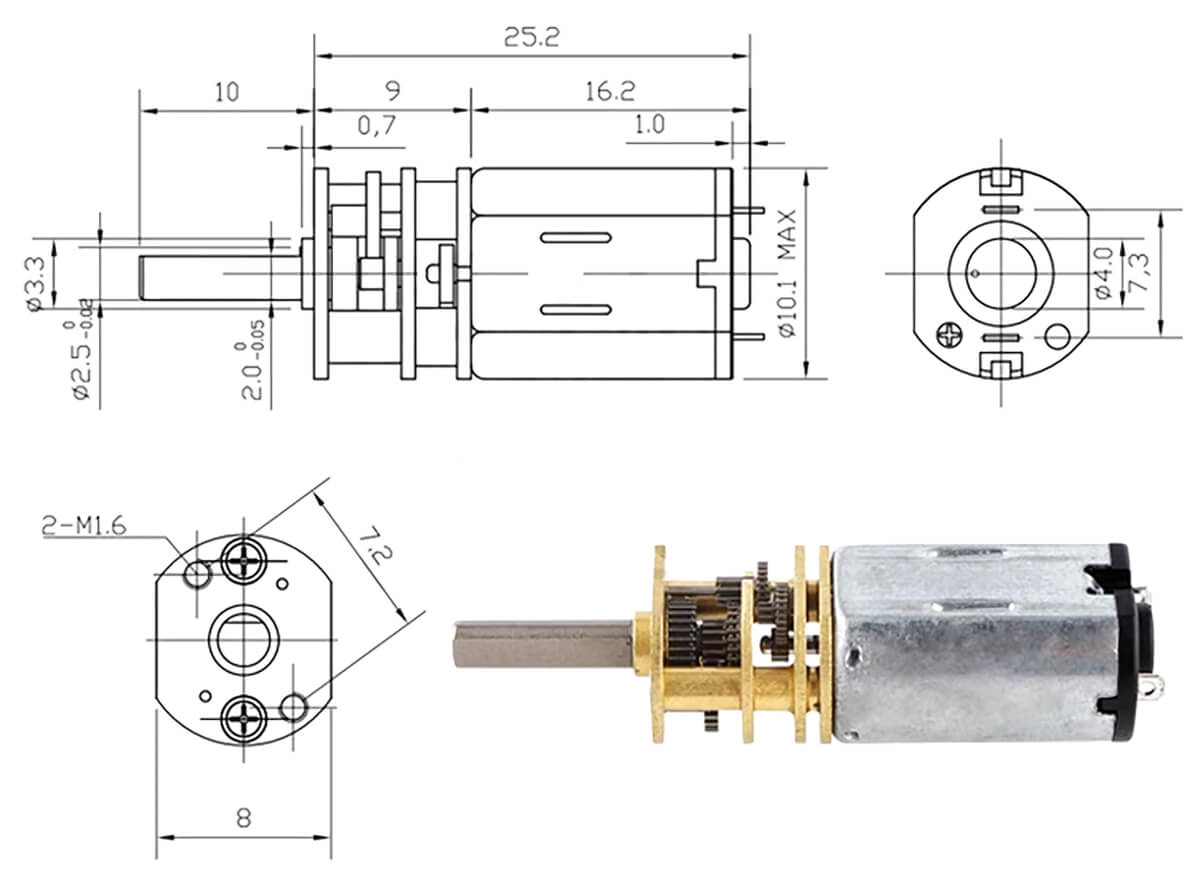

2.5mm Shaft M20 DC Motor Small Electric Motor Reduction Motor 2D Drawing/Dimension

Note:

1) Dimension in the drawing can be adjusted acording to customer's requirement.
2) Motor can be designed upon the customer's requirements on performance,
installation, power connection method and motor dimension.
3) Motor can be mounted with varying shape and sizes of eccentric weight, which is
made of iron, brass, or fre-ally to become a vibralion motor.
1g=0.035oz
1inch=25. 4mm
1g.cm=0.098mN.m
10z=28.35g
1mm=0.0394inch
1mNm=10.2g cm

Compact & Powerful: M20 Series 10mm DC Gear Motors

Key Features:
✅ Ultra-Compact - Only 10mm diameter with integrated metal gearbox
✅ Precision Performance - 52-185 RPM with 0.22-0.9kg.cm torque output
✅ Low Power Consumption - ≤0.4A stall current for energy efficiency
✅ CE Certified - Meets EU safety standards for commercial use
✅ Multiple Ratios - Choose 1:100 (185RPM) or 1:250 (74RPM) versions

Technical Specifications

Ideal Applications

• Medical Devices: Insulin pumps, surgical tools

• Robotics: Micro robotic arms, drone gimbals

• Automation: Smart locks, vending mechanisms

• Consumer Electronics: Camera focus systems, smart mirrors

Precision Micro Gear Motors - Custom 10mm to 42mm DC Solutions

Compact Power for Smart Applications
Our high-performance DC gear motors range from ultra-compact 10mm to robust 42mm diameters, available in 3.7V, 5V and 12V configurations. Specializing in M20 series micro gearboxes, we deliver customized motion solutions for precision-driven applications worldwide.

Technical Highlights:
✔ Voltage Options: 3.7V | 5V | 12V DC
✔ Size Range: 10mm - 42mm diameter
✔ Custom Gear Ratios: Optimized torque/speed profiles
✔ Key Features:

• High torque density

• <45dB silent operation

• Industrial-grade metal gears

• IP54 protection available

Industry-Proven Applications:

Smart Technology
• Smart lock actuators
• Home automation systems
• ATM cash handling mechanisms

Precision Equipment
• 3D printer extruders
• Medical pump drives
• CNC tool positioning

Commercial Systems
• Bill validator mechanisms
• Stage lighting controls
• Camera autofocus modules

Customization Services:
We engineer motors to your exact specifications:
→ Shaft modifications (D-cut, flatted, threaded)
→ Encoder integration (optical/magnetic)
→ Special winding configurations
→ Custom voltage/current requirements

Guang Dong Lihua Mechatronics Co., Ltd.(Lihua Motor) was founded in May 2003, formerly Shen Zhen Hua Chuang Sheng Motor Co., Ltd.  (HCS Motors)

In order to expand its business, it relocated from Shenzhen to Humen Town (Dongguan City) in October 2017. Lihua is a manufacturer of high-quality DC motors integrates professional development, production and sales, offering a wide range of DC motors, including brushed and brushless motors, geared motors,stepper motor. We has been at the forefront of motor manufacturing and customizing for 20 years, consistently delivering high-performing and reliable products to clients worldwide.

These motors are designed for various applications, including industrial equipment, medical devices, robotics, automotive systems, motor vehicle and more. We also provides Customized DC Motor Solutions to meet specific customer needs.
