| Brand Name : | Lihua Motor/HCS Motors |
| Model Number : | RK-370SA-10760 |
| Certification : | IATF16949/ISO9001/Reach/RoHs/SGS |
| Price : | Negotiation |
| Payment Terms : | L/C,T/T,D/A,D/P,Western Union |
| Supply Ability : | 10000PCS/Day |
| Delivery Time : | 35-45Days |

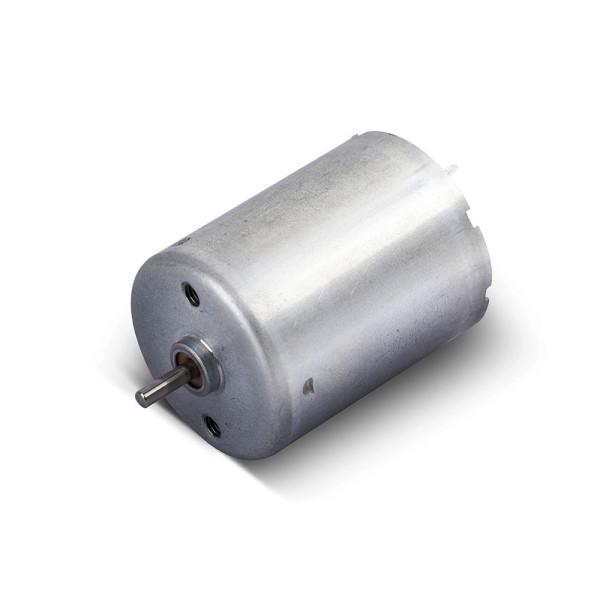

RF-370SA-10760 12 Volt DC Motor Electric Motor DC Motor 2000rpm-2700rpm Low Speed
Our RF-370SA-10760 series represents industrial-grade brushed DC electric motors engineered for reliable performance in demanding applications. Available in 24 volt DC electric motor and 12V configurations, these direct current electric motors deliver optimized torque-speed characteristics with superior durability.
Key Specifications:
Model Range: RK-370SA-10760 (24V) / RK-370CA-10760 (12V)
Voltage Options: 9V/12V/24V DC (3-24V operational range)
Speed Range: 2,000-4,400 RPM (model dependent)
Compact Dimensions: Ø24.4mm × 30.8mm (L)
Shaft Configurations:
Standard: 2.0mm diameter × 5mm length
Custom: Knurled shafts available (Ø2.02-2.05mm)
Weight: 50g (lightweight yet robust construction)
12 Volt DC Motor Electric Motor DC Motor 370 Mini Motor Dimension
24mm DC Motor Electric Motor DC Motor 370 Mini Motor TN Curve
1. 24 Volt DC Electric Motor Performance
RK-370SA-10760: 4,400 RPM @ ≤18mA (no-load)
RK-370SA-10760A: Precision knurled shaft variant (±0.02mm tolerance)
2. 12V DC Electric Engine Variants
RK-370SA-10760B: 2,200 RPM @ ≤15mA
RK-370CA-10760: 2,750 RPM @ ≤12mA (enhanced efficiency)
Core Technologies:
✔ Permanent Magnet Stator: Consistent torque output
✔ Precision Carbon Brushes: 500+ hour lifespan
✔ Class B Insulation: 85°C thermal tolerance
| Model | Voltage | No-Load RPM | Current Draw | Key Feature |
|---|---|---|---|---|
| RK-370SA-10760 | 24V | 4,400 | ≤18mA | Standard 24V |
| RK-370SA-10760A | 24V | 4,400±220 | ≤18mA | Knurled shaft |
| RK-370SA-10760B | 12V | 2,200 | ≤15mA | Low-current design |
| RK-370CA-10760 | 12V | 2,750 | ≤12mA | High-efficiency |
As a specialist in DC permanent magnet motors, we offer:
Voltage-Specific Optimization: 3V-24V rewinding
Shaft Modifications: D-cut, flatted, or extended lengths
Bearing Upgrades: Oil-impregnated or ball bearing options
IP Rating Enhancements: Dust/waterproof sealing
Why Our Electric Motors?
20+ Years in micro motor manufacturing
1,200+ Custom Projects delivered globally
ISO 9001 & RoHS & Reach &CE &IATF16949 & ISO9001 certified production
These direct current electric motors excel in:
Automation Systems
Conveyor belt drives
Packaging equipment feeders
Commercial Equipment
Vending machine mechanisms
ATM bill validator modules
Medical Devices
Surgical tool actuators
Dental equipment drives
Consumer Electronics
Professional camera gimbals
High-end audio turntables
MOQ: 2000 units (samples available)
Lead Time: 30 working days (standard)
Documentation:
Free 3D CAD files
EMI/EMC test reports
|
|
