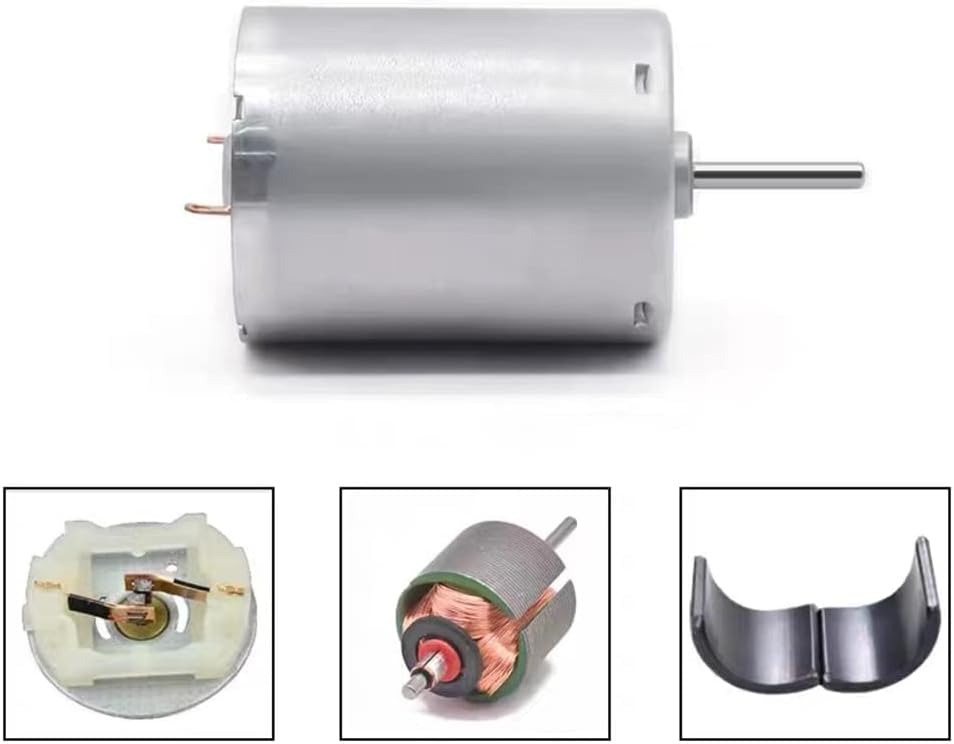

24.4mm RK-370CA-15320 Direct Current Motor 12V 6000RPM-6300RPM For Vacuum Wheel
The RK-370 series 12V micro motor is a high-performance PMDC motor widely used in various applications, including vacuum wheels, robotics, and industrial automation. As one of the most reliable products from leading DC motor manufacturers, this 24mm DC motor offers exceptional efficiency, speed, and durability. Designed to meet industry standards, it delivers superior performance across a wide voltage range of 6V to 12V, making it an ideal choice for various power-driven applications.
The RK-370CA-15320 is a precision-engineered PMDC motor known for its compact size, high torque, and stable output. With a motor diameter of 24.4mm and a length of 30.8mm, this small yet powerful motor is perfect for applications where space is limited but high-speed performance is required. The shaft has a diameter of ∅2mm with a total length of 38.8mm, while the effective shaft length is 7.3mm, which can also be customized according to specific requirements. Weighing just 50g, this lightweight motor ensures efficiency without compromising on durability.
Motor Model: RK-370
Rated Voltage: 12V
Motor Size: 24.4mm (Diameter) × 30.8mm (Length)
Shaft Size: ∅2mm × 38.8mm
Shaft Length: 7.3mm (customizable as per requirements)
Weight: 50g
Voltage Range: 6V–12V
RK-370CA-15320:
Rated Voltage: 12.0V
No-load Speed: 6200 RPM
Current: ≤ 458mA
Shaft Length: 7.3 ± 0.15mm
RK-370CA-15320-1:
Rated Voltage: 12V
No-load Speed: 6200 ± 310 RPM
Current: ≤ 45mA
Shaft Length: 7.3 ± 0.15mm
RK-370CA-15320-2:
Rated Voltage: 12V
No-load Speed: 6200 RPM
Current: ≤ 45mA
Shaft Length: 6.5 ± 0.25mm
12 Volt Direct Current Motor 12V 370 Mini Motor Dimension
24mm DC Motor Miniature DC Motor TN Curve
High-Speed Performance: With a no-load speed ranging from 6000 to 6300 RPM, this 12V micro motor is perfect for high-speed applications.
Compact Design: Measuring only 24.4mm in diameter, this 24mm DC motor is suitable for installations where space is a constraint.
Wide Voltage Compatibility: Operates efficiently within a 6V-12V range, providing flexibility across different applications.
Reliable and Efficient: Manufactured by trusted DC motor manufacturers, ensuring durability and long service life.
Customizable Shaft Length: Available with different shaft length configurations to suit
various requirements.
This RK-370 PMDC motor is widely used in multiple industries, including:
Vacuum Wheel Motors: Provides reliable suction power for robotic vacuum cleaners and other automated cleaning devices.
Industrial Automation: Ensures smooth operation in conveyor belts, automated mechanisms, and precise motion control systems.
Robotics: Ideal for robotic arms, servos, and automation components requiring consistent speed and torque.
Medical Equipment: Used in compact medical devices for precision movement and efficiency.
Consumer Electronics: Found in small household appliances, toys, and gadgets requiring a
high-speed 12V micro motor.
We are one of the leading DC motor manufacturers, dedicated to providing high-quality PMDC motors for various industrial and commercial applications. Our RK-370 series motor is engineered for durability, high performance, and energy efficiency. Whether you need a 12V micro motor for small-scale applications or a 24V DC motor with high torque and high speed for demanding tasks, we have the right solutions to meet your needs.
With strict quality control, advanced manufacturing techniques, and customizable features, our 24mm DC motors ensure optimal performance and long-lasting reliability. Contact us today to learn more about our PMDC motor solutions and how they can enhance your applications!
|
|
