37mm 90:1 12V 24V 540 DC Planetary Gear Motor Gearbox Motor DC For Car Park Lock

37mm 12V 24V 540 DC Planetary Gear Motor Gearbox Motor DC For Car Park Lock

37mm 540 High Torque Electric Geared Motor Key Features

✔ Gearbox Motor Compact Design:

• Base motor: 540-series mini DC motor

  • 540 Motor Size:35.8mm*50mm(Dia*L)
  • 540 Motor Type:RS-540
  • With wires or no wires can custom

• Gearbox:37mm worm drive reducer

• Gearbox Diameter:37mm
• Gearbox Step Height:6mm
• Mounting Screw Holes Size:3mm
• Screw Hole Distance:31mm
• Output Shaft Diameter:6mm ,5mm D shaft,5.5mm D shaft
• Material: Durable Aluminum Alloy Design and Style: Sleek, Compact
• Usage and Purpose: Versatile for various applications
• Performance and Property: High Torque, Max Speed Transmission
• Parts and Accessories: Compatible with 550 545 520 3530 500 540 Brush Gear Motors

• Typical Configurations

  Model	Motor	Gearbox Diameter	Torque
  GA37Y500	500-series (32mm*19.5mm)	37mm	Custom
  GA37Y520	520-series(33mm*22.7mm)	37mm	Custom
  GA37Y3530	3530series(35mm*30mm)	37mm	Custom
  GA37Y540	540-series(35.8mm*50mm)	37mm	Custom
  GA37Y520	520-series(33mm*22.7mm)	37mm	Custom
  GA37Y545	540-series(36mm*47.5mm)	37mm	Custom

✔ Custom Gear Ratios:

• Standard options: 8.7:1 | 26.2:1 | 78.5:1 | 183:1 |10:1 | 30.:1 | 90:1

• Custom ratios available for specialized torque requirements

37mm 540 High Torque Electric Geared Moto Parameter List

*Remarks: The / in the table indicates that it is not possible to block the rotation, if it occurs, it may cause damage to the internal gears.

37mm 12V 24V 540 DC Planetary Gear Motor Gearbox Motor Dimensions

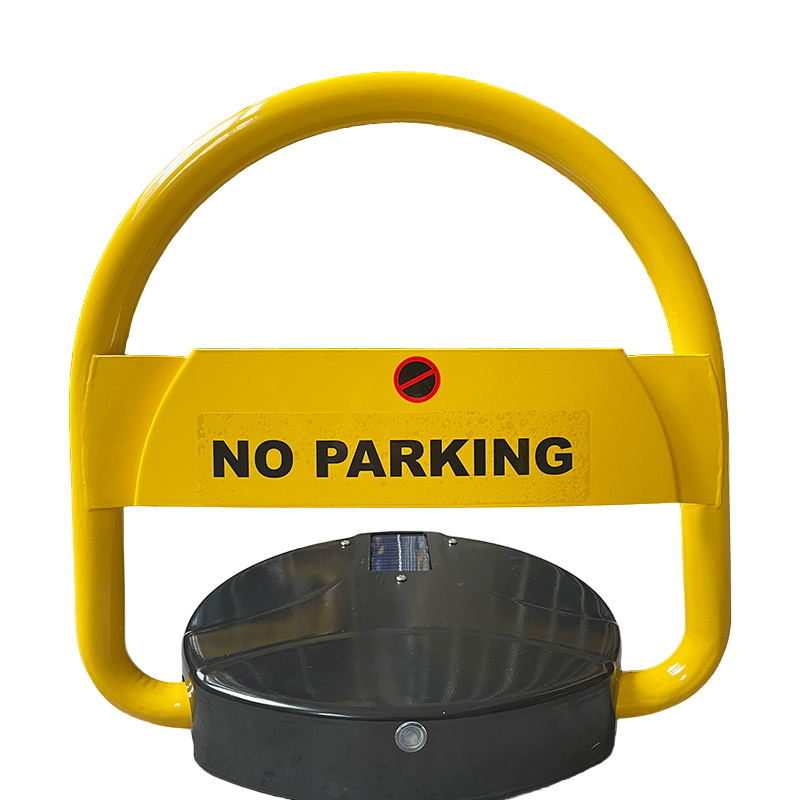

Application of 37mm High-Torque Micro DC Gear Motor in Parking Lock Devices

1. Overview

The 37mm micro DC gear motor, known for its compact size, high torque, and efficiency, is widely used in intelligent parking lock devices. Parking locks are primarily utilized in personal or commercial parking lots to prevent unauthorized occupation of designated spaces, enhancing parking management convenience.

2. Advantages of Application

• High Torque Drive: The 37mm DC gear motor, with its gear reduction mechanism, provides sufficient torque (typically 3–20kg.cm or higher) to ensure the stable lifting and lowering of the parking lock, even under external impacts (such as vehicle collisions).

• Low Energy Consumption: The motor operates efficiently, reducing power consumption and extending the battery life of the parking lock, making it ideal for solar-powered or battery-operated smart parking locks.

• Compact Structure: Its 37mm size allows for embedded installation, saving space and enabling a more refined design that is easy to maintain.

• Long Service Life: With metal or high-strength composite gears, wear and tear are minimized, ensuring durability and long-term operation.

3. Specific Application Methods

• Automatic Lifting Control: The motor drives the lifting mechanism of the parking lock, enabling users to control locking and unlocking via remote control, Bluetooth, or a mobile app.

• Self-Locking Function: Some motors are equipped with a self-locking feature, maintaining their position even when power is cut off, preventing tampering or forced manual movement.

• Shock Absorption Protection: By adjusting the motor speed, the impact caused by rapid lifting or lowering can be reduced, ensuring stable and safe operation.

4. Selection Recommendations

• Rated Voltage: Common options include 12V/24V DC to accommodate different power supply methods.

• Torque Requirements: Choose a suitable torque based on the parking lock’s weight and usage conditions, generally recommended to be ≥5kg.cm.

• Protection Level: An IP65 or higher rating is recommended for outdoor applications to withstand rain, dust, and other environmental factors.
