    6V N20 Single Shaft Small High Torque Motor Gear Reduction Electric Motor

    Ask Lasest Price
    Brand Name : Lihua Motor/HCS Motors
    Model Number : GM1218-N20
    Certification : ISO9001,CE,RoHs,Reach,SGS
    Payment Terms : L/C,T/T,D/P,D/A
    Supply Ability : 50000pcs/day
    Delivery Time : 40-45days
    • Product Details
    • Company Profile

    6V N20 Single Shaft Small High Torque Motor Gear Reduction Electric Motor

    6V N20 Single Shaft Small High Torque Motor Gear Reduction Electric Motor


    6V N20 Motor Single Shaft Small High Torque Motor Gear Reduction Electric Motor


    The N20 D-shaft Micro DC Gear Motor is engineered for performance, durability, and precision. Constructed with high-quality metal gears and red copper materials, this motor offers exceptional wear resistance and extended service life. The internal copper coil ensures excellent electrical conductivity while minimizing heat generation, resulting in smooth and stable motor output even under long-term operation.

    This gear motor features adjustable speed options to suit diverse application requirements, including 16RPM, 27RPM, 53RPM, 68RPM, 136RPM, and 381RPM. With its compact size and lightweight design, the N30 motor delivers high torque at low speeds, offering reliable performance in space-constrained environments.

    Designed with fine craftsmanship, this motor stands out for its low noise, low energy consumption, and consistent output. Its characteristics—lightweight structure, high torque, low speed, long operating life, and quiet performance—make it ideal for integration in various applications such as smart toys, simulation robots, electronic locks, smart home systems, medical equipment, and industrial automation.

    Custom design options are available to meet specific project needs. Whether you require matching encoders, gearboxes, or motor drivers, our technical team is ready to provide tailored solutions. Please feel free to contact us for more details and customization support.


    N20 Single Shaft Small High Torque Motor Overview


    Warranty

    6 months - 2 year

    Brand Name

    Vshida

    Model Number

    GM1218-N20

    Usage

    Smart toys, simulation robots, electronic locks, smart home, medical, industrial, smart cars, robots, cameras, etc.

    Type

    Gear motor

    Weight

    TBD (different ratio different weight)

    Components

    Diversifed

    Construction

    Permanent Magnet

    Commutation

    Brushless/Brush

    Protect Feature

    Customized(Waterproof, fireproof, Fully enclosed)

    Efficiency

    90%

    Bearing

    Ball Bearing

    Shast TypeD-Shaft

    Gear Motor Rated speed

    6-350 (rpm)

    Rated Voltage

    12 (V)

    Start Current

    10 mA

    Dimensions

    12*27 (mm)

    Certificate

    IAFT16949

    Customized

    Acceped

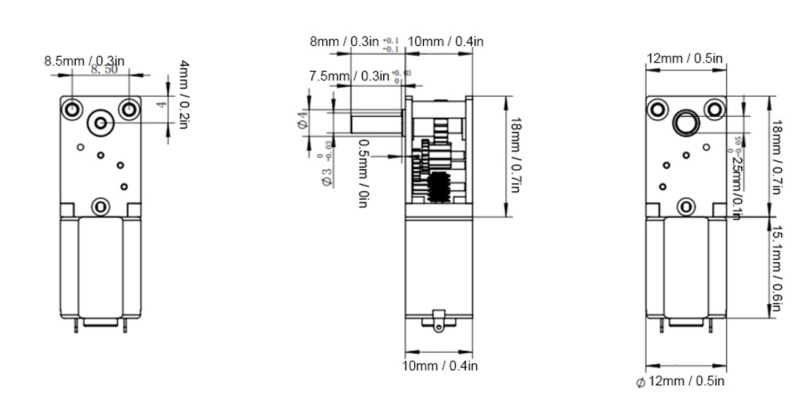

    6V N20 Motor Single Shaft Small High Torque Motor Gear Reduction Dimension



    6V N20 Single Shaft Small High Torque Motor Gear Reduction Electric Motor

    6V N20 Motor Single Shaft Small High Torque Motor Gear Reduction


    GM1218-N20 12V DC, 16,000RPM, 1.02W Single Shaft Small High Torque Motor Technical Data


    Ratio

    No Load

    Rated Load

    Stall

    i : 1

    Speed

    Current

    Speed

    Current

    Torque

    Torque

    Current

    42

    95 rpm

    10mA

    60 rpm

    40mA

    9g.cm

    31.5g.cm

    150mA

    118

    34 rpm

    10mA

    21 rpm

    40mA

    27g.cm

    88.5g.cm

    150mA

    236

    17 rpm

    10mA

    11 rpm

    40mA

    53g.cm

    177g.cm

    150mA

    302

    13 rpm

    10mA

    8 rpm

    40mA

    68g.cm

    226.5g.cm

    150mA

    603

    7 rpm

    10mA

    4 rpm

    40mA

    136g.cm

    452.2g.cm

    150mA

    1016

    4 rpm

    10mA

    2 rpm

    40mA

    232g.cm

    772.5g.cm

    150mA


     Note: all reduced no-load speeds have a tolerance of ±5%.

    Key Points For GM1218-N20 Single Shaft Motor


    Robust and Long-Lasting Build:
    The GM1218-N20 gear motor is engineered for reliability and strength, featuring a robust construction using a blend of high-quality zinc alloy and brass components. This DC 6V single-shaft worm gear motor comes equipped with a secure mounting base, offering enhanced stability during installation and operation. Its surface is coated with a three-layer high-density molecular paint, providing excellent resistance against corrosion, wear, and harsh environmental conditions—ensuring long-term durability and consistent performance.
    Accurate and Efficient Speed Control:
    Designed with a precise gear reduction ratio of 1:236, this gear motor delivers controlled and efficient torque output, making it ideal for applications that demand accurate movement and positioning. The motor is capable of delivering strong output power and excellent load-bearing capacity, ensuring stable and dependable performance in various operating environments.
    Smooth, Low-Noise Operation:
    Equipped with a high-torsion belt encoder reducer drive system, the GM1218-N20 ensures smooth transmission and minimal operational noise. Its quiet and vibration-free performance makes it particularly well-suited for noise-sensitive applications such as intelligent vehicles, service robots, smart home appliances, and automation systems where silent operation is essential.
