| Brand Name : | Lihua Motor/HCS Motors |
| Model Number : | GB37Y528/GB37-528 |
| Certification : | CE/RoHs /Reach/IATF16949/ISO9001 |
| Payment Terms : | L/C,D/P,T/T,Western Union,D/A |
| Supply Ability : | 10000PCS/Day |
| Delivery Time : | 35-45Days |

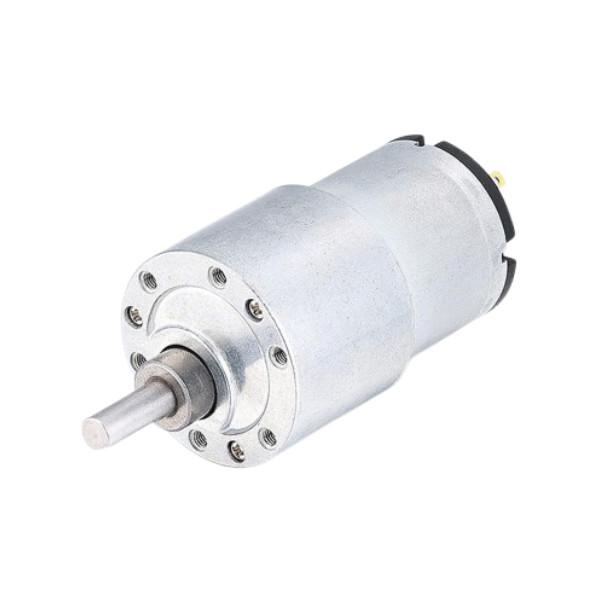

37mm 12V Motor High Torque Gearbox GM37 528 DC 50RPM To 490RPM Micro Motor
Strong high-Torque Gear Motor Data Sheet Torque:Compared to a typical motor of the same size, the torque production is greatly increased by the gear reduction system, enabling it to drive bigger loads.
Speed Control: This motor's reduction gearbox allows it to produce lower output speeds while preserving or boosting torque, which is crucial for precise motions in automation systems, robotics, and other fields.
Durability: A motor with high-quality construction is often made to last, with sturdy casing to protect the internal components and wear-resistant gears.
Key Features:
Operating Voltage: 6V DC to 12V DC (Customizable up to 24 DC upon request).
Weight: Approximately 180g (varies with the selected reduction ratio).
37mm 500 Rpm 12V DC motor With Gearbox Parameter List
| Ratio | Gearbox | No Load | Rated Load | Stall | ||||
| i : 1 | Length | Current | Speed | Current | Speed | Torque | Current | Torque |
| 6.3:1 | 19.0mm | ≤0.2A | 1,530rpm | ≤2.0A | 1,030rpm | 0.6kg.cm | ≤6.0A | 1.6kg.cm |
| 10:1 | 19.0mm | ≤0.2A | 960rpm | ≤2.0A | 650rpm | 1.0kg.cm | ≤6.0A | 2.7kg.cm |
| 18.8:1 | 21.5mm | ≤0.2A | 510rpm | ≤2.0A | 346rpm | 1.8kg.cm | ≤6.0A | 4.8kg.cm |
| 30:1 | 22.0mm | ≤0.2A | 320rpm | ≤2.0A | 215rpm | 3.0kg.cm | ≤6.0A | 7.5kg.cm |
| 50:1 | 24.0mm | ≤0.2A | 192rpm | ≤2.0A | 130rpm | 4.8kg.cm | ≤6.0A | 13.0kg.cm |
| 90:1 | 24.0mm | ≤0.2A | 107rpm | ≤2.0A | 72rpm | 8.5kg.cm | ≤6.0A | 21.0kg.cm |
| 150:1 | 26.5mm | ≤0.2A | 64rpm | ≤2.0A | 43rpm | 14.5kg.cm | ≤6.0A | 33.0kg.cm |
| 260:1 | 26.5mm | ≤0.2A | 35rpm | ≤2.0A | 25rpm | 20.0kg.cm | ≤6.0A | ≥35.0kg.cm; not allowed stalling |
| 450:1 | 29.0mm | ≤0.2A | 21rpm | ≤2.0A | 14rpm | 25.0kg.cm | ≤6.0A | ≥35.0kg.cm; not allowed stalling |
| 630:1 | 29.0mm | ≤0.2A | 15.5rpm | ≤2.0A | 10rpm | 30.0kg.cm | ≤6.0A | ≥35.0kg.cm; not allowed stalling |
37mm 50RPM To 490RPM Rpm 24V DC motor With Gearbox Parameter List
| Ratio | Gearbox | No Load | Rated Load | Stall | ||||
| i : 1 | Length | Current | Speed | Current | Speed | Torque | Current | Torque |
| 6.3:1 | 19.0mm | ≤0.13A | 1,530rpm | ≤1.2A | 1,030rpm | 0.6kg.cm | ≤3.5A | 1.6kg.cm |
| 10:1 | 19.0mm | ≤0.13A | 960rpm | ≤1.2A | 650rpm | 1.0kg.cm | ≤3.5A | 2.7kg.cm |
| 18.8:1 | 21.5mm | ≤0.13A | 510rpm | ≤1.2A | 346rpm | 1.8kg.cm | ≤3.5A | 4.8kg.cm |
| 30:1 | 22.0mm | ≤0.13A | 320rpm | ≤1.2A | 215rpm | 3.0kg.cm | ≤3.5A | 7.5kg.cm |
| 50:1 | 24.0mm | ≤0.13A | 192rpm | ≤1.2A | 130rpm | 4.8kg.cm | ≤3.5A | 13.0kg.cm |
| 90:1 | 24.0mm | ≤0.13A | 107rpm | ≤1.2A | 72rpm | 8.5kg.cm | ≤3.5A | 21.0kg.cm |
| 150:1 | 26.5mm | ≤0.13A | 64rpm | ≤1.2A | 43rpm | 14.5kg.cm | ≤3.5A | 33.0kg.cm |
| 260:1 | 26.5mm | ≤0.13A | 35rpm | ≤1.2A | 25rpm | 20.0kg.cm | ≤3.5A | ≥35.0kg.cm; not allowed stalling |
| 450:1 | 29.0mm | ≤0.13A | 21rpm | ≤1.2A | 14rpm | 25.0kg.cm | ≤3.5A | ≥35.0kg.cm; not allowed stalling |
| 630:1 | 29.0mm | ≤0.13A | 15.5rpm | ≤1.2A | 10rpm | 30.0kg.cm | ≤3.5A | ≥35.0kg.cm; not allowed stalling |
*Remarks: The / in the table indicates that it is not possible to block the rotation, if it occurs, it may cause damage to the internal gears.

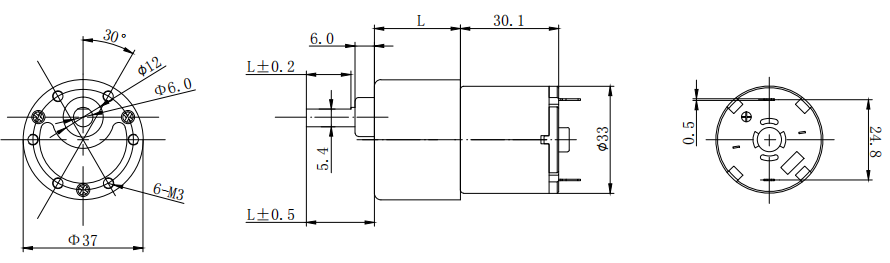

37mm 500 Rpm 12V DC 528Motor With Gearbox Dimensions
| Ratio | 6.25-10 | 18.8-30 | 43.8-90 | 102-270 | 306-976 | 1179-2928 |
| Gearbox Length Option(L) | 19mm | 21.5mm | 24mm | 26.5mm | 29mm | 31.5mm |
Key Components Of GB37-528 Mini Gear Motor Dirver
Gearbox Structure & FunctionalityA gear reduction motor integrates a high torque gearbox composed of multiple gears. Its primary role is to reduce the input speed of the drive motor while amplifying the output torque, enabling efficient power transfer for demanding applications. |  | The stator forms the stationary foundation of a DC gear motor, housing essential parts such as main magnetic poles, commutation poles, a durable frame, and brush assemblies. These elements work together to generate the magnetic field required for rotor movement. |
Rotor AssemblyIn micro gear motors, the rotor acts as the rotating core. It includes the armature core, armature windings, commutator, and a precision-engineered rotating shaft. This assembly converts electrical energy into mechanical motion, driving the motor’s operation. | Bearings & Worm GearsBearings and worm gears are critical in gear reduction motors for supporting rotational motion and power transmission. Bearings ensure smooth, low-friction operation, while worm gears efficiently transfer torque between perpendicular axes, enhancing the high torque gearbox’s reliability and performance. |
|
|
