16mm Gear Motor 12V High Torque 100 Rpm DC Motor Low Rpm Gear Motor For DIY Model

The 16mm Gear Motor DC combines a high-efficiency DC motor with a precision 20mm diameter gear reduction box, offering exceptional torque output in an ultra-compact package. With customizable gear ratios including:

✔ Standard Options: 20:1, 35:1, 63:1, 100:1, 200:1, 300:1, 400:1, 800:1
✔ Custom Ratios: Tailored to your exact speed/torque requirements

The gearbox is available in multiple lengths (11.2mm, 12.7mm, 14.2mm, 15.7mm,17.2mm) for flexible integration across applications.

16mm Gear Motor Specifications

Model : GA16-050 micro metal gearmotor

Gearbox: 16 mm Dia metal spur gear reducer

Motor Size:12mm*15mm*L (Motor Length can be custom )

Shaft : Φ3mm D-cut 0.5mm, M4, custom

Gear Box Size:16mm*L mm (Length can be customized)
Shaft size : Approx. 4 x L mm (Dia.*L)
Nominal Voltage : DC 3V 6V 12V

Operating Voltage:3V-9V 18V-26V
Revolving speed:
15RPM/18 RPM / 25 RPM / 35 RPM / 59 RPM / 70 RPM / 100RPM/120 RPM / 140 RPM / 250 RPM / 500 RPM

6V : 15RPM / 29 RPM / 120 RPM / 200 RPM
12V : 18 RPM / 70 RPM / 100 RPM /200RPM / 300 RPM / 400 RPM / 1000 RPM

Encoder : Magnetic encoder available;
Commutation: Carbon brush/Graphite brush/Metal brush;
Construction: micro Permanent Magnet iron cored dc electric motor;

Key Features

1. Precision Motion Control

• ±5% speed consistency under load

• Minimal backlash (<3°) for accurate positioning

2. Robust Power Delivery

• Stall torque: 2.5kg-cm (3.5kg-cm peak)

• Dual ball bearing support for axial loads

3. Space-Saving Integration

• 16mm diameter × 38mm length (including shaft)

• 4x M1.6 mounting threads (20mm pattern)

4. Versatile Connectivity

• D-shaped 4mm output shaft (8mm length)

• Pre-soldered 15cm wires (JST connector optional)

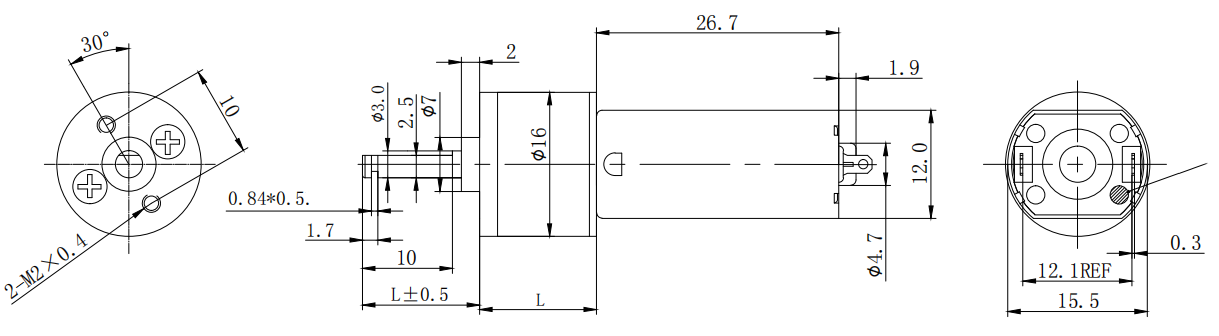

16mm Gear Motor 12V High Torque 100 Rpm DC Motor Dimensions

Motor Outline Features:

• Single 050 Motor Size:12mm*15.5mm*26.7(H*Dia*L)
• Single 050 Motor Type:RF-050/RK-050
• Gearbox Diameter:16±0.2mm
• Gearbox Step Height:2mm
• Gearbox Shaf Diamteter:3mm or 3mm D shaft (D-shaped output shaft is processed and milled to increase the force and friction, making the transmission more stable and convenient to connect and fix)
• Mounting Screw Holes Size:2*0.4mm
• Mounting Screw Holes Distance:10mm
• Gearbox Outshaft Shape/Length can be custom

16mm Gear Motor DC Motor Low Rpm Gear Motor Parameter List

*Remarks: The / in the table indicates that it is not possible to block the rotation, if it occurs, it may lead to damage to the internal gears.

The above list of parameters is a general parameter, if you have different needs can be processed according to requirements.
