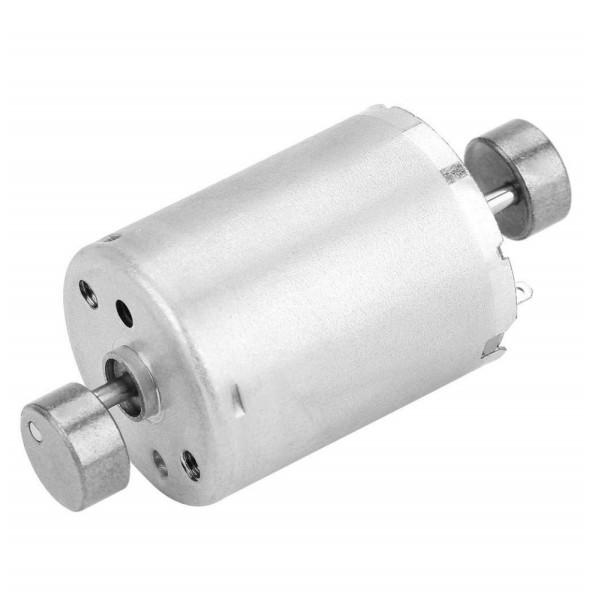

RK370 Double Shaft 12v DC Motor Vibration Motor High Torque For Massager OEM

Miniature vibrating motors are highly versatile components widely used across various industries and applications. These compact yet powerful motors, such as the 370 mini motor and other micro vibration motor models, are essential in devices ranging from consumer electronics to industrial machinery. Commonly found in tools, industial instruments, control sticks, and massagers, these motors also play critical roles in:

• Alert Systems: Providing vibration alerts in devices like mobile phones, pagers, and alarms.
• Power Sources: Driving motion in robotics, automated systems, and small mechanical devices.
• Material Handling: Preventing material buildup in hoppers, feeders, and conveyor systems.

Key Specifications

Condition: 100% Brand New

Voltage: 12V

Weight: Approx. 55g / 1.9oz

Length: Approx. 31mm / 1.2in

Width: Approx. 24.4mm / 1.0in

Vibration Head Diameter: Approx. 12mm / 0.4in

Vibration Head Thickness: Approx. 5mm / 0.2in

Thread Size: M3 for easy mounting.

Operating Voltage:1V-24V

Rated Voltage: DC 12V (Free custom )

No-load Speed:2000RPM-8000RPM (Free -Custom)

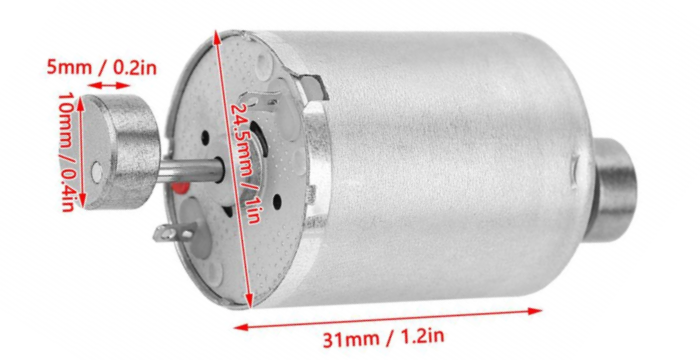

RK370 Double Shaft 12 DC Motor Vibration Motor Dimension

Application Scenarios of RK370 Double Shaft 12V DC Vibration Motor

The RK370 Double Shaft 12V DC Vibration Motor is a high-torque, versatile motor designed for precision applications across various industries. Below are its key application scenarios in automotive, medical devices, and gaming controllers:

1. Automotive Systems

The RK370 vibration motor is widely used in automotive applications to enhance safety and user experience:

• Seatbelt Reminders: Provides vibration alerts to remind drivers and passengers to fasten their seatbelts.

• Anti-Theft Alarms: Generates vibrations as part of alarm systems to deter theft or unauthorized access.

• Smart Seats: Integrated into advanced seating systems to deliver vibration-based notifications or massage functions for driver comfort.

2. Medical Devices

In the medical field, the RK370 motor offers precise vibration feedback for diagnostic and therapeutic equipment:

• ECG Machines: Used to provide vibration alerts for abnormal heart rate detection or operational feedback.

• Ultrasound Devices: Enhances user interaction by delivering tactile feedback during scans or measurements.

• Blood Pressure Monitors: Generates vibrations to notify users of completed readings or operational status.

3. Gaming Controllers

The RK370 motor is a popular choice for gaming peripherals, offering immersive tactile feedback:

• Vibration Effects: Simulates in-game actions like explosions, collisions, or environmental interactions, enhancing the gaming experience.

• Haptic Feedback: Provides realistic touch sensations for better control and engagement during gameplay.

FAQ

Q:What is the use of micro vibration motor?

A:Micro vibration motors can be used in Automotive safety, medical precision, or gaming immersion.

Q:How does a vibration motor work?

A:A miniature vibration motor is a small motor that usually consists of four parts: a rotor, a stator, a bearing and a drive circuit. Among them, the rotor is the core component of the vibration motor, which consists of magnets, iron cores and weights. The stator, on the other hand, consists of coils and magnets, and its function is to generate a magnetic field, which drives the rotor to rotate.

Q:How much voltage does a vibrating motor need?

A:Recommended operating range is 3.0 to 12V; starting voltage is 6 V.
