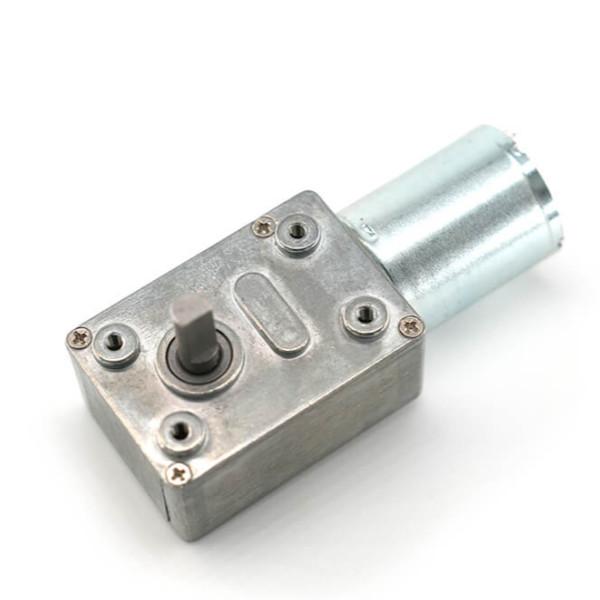

High Torque Worm Gearbox 12V DC Motor With Worm Gear For Door Opener Encoder

DC 12V 5RPM High Torque Turbine Worm Gear Box Reduction Motor
This type is Miniature Worm Gear DC Motor, which can change shaft rotation direction while the wiring positive and negative be changed.
It is also have addition two characteristics: first, With self-locking, the output shaft can not rotation when switch off, that is self-locking.

Second, Gearbox output shaft and motor shaft are come to be a rectangle.
It is widely used in various of ocns that require special install size.
Specifications:
Model: JGY-370
Material: Metal
Main Color: Gray
Rated Voltage:DC 12V
Motor No-load Speed:8300RPM
Gear Box No-load Speed:5RPM
Reduction Ratio:1:1650
Rated Torque:20 Kg.cm
Female Thread Diameter:3mm
Shaft Size:6 x 14mm / 0.24" x 0.55" (D*L)
Main Body Size:76 x 32 x 25mm (L*W*H)

JGY370 12V DC Motor With Worm Gearbox Dimension

Features:

• The worm gear motor with self-locking, ie, in the case in the absence of electric motors, the output shaft is not to move, that is self-locking.

• The gearbox output shaft direction of the motor shaft is arranged vertically.

• The entire body of the motor output shaft relative to the general direction of gear motor short, widely adapted to some of the installation dimensions of this aspect is required.

• Widely used in windows, a door opener, miniature winch and other occasions.

• Overall Diameter: 25mm
• Overall Length: 32.1mm
• Overall Height: 24.8mm (Excluding Shaft)
• Rated Voltage: 12VDC
• Mounting Holes: M3
• Shaft Diameter: 6mm
• Shaft Length: 14mm
• No Load Shaft RPM: ~5RPM @ 12VDC
• No Load Current: ~40mA
• Flatted Shaft

DC6V JGY370-0660 Worm Gear Motor Datasheet

DC12V JGY370-1260 High Torque Worm Datasheet

JGY370-2440 24V DC Motor With Worm Gear Datasheet
