| Ask Lasest Price | |
| Brand Name : | Lihua Motor/ HCS Motors |
| Model Number : | RC-280 |
| Certification : | ISO9001/Reach/RoHs/SGS/CE |
| Price : | Negotiation |
| Payment Terms : | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability : | 12000pcs/Day |
| Delivery Time : | 30-45Days |
| Technical Parameter | Value |
|---|---|
| Product Name | RC-280 Carbon Brush Motor |
| Rated Volt | 12V |
| Shaft Type | Round/D Shaft/knurling, screw thread |
| Shaft Length | 8±0.5mm |
| Shaft Diameter | 2mm |
| Direction of Rotation | CW/CCW |

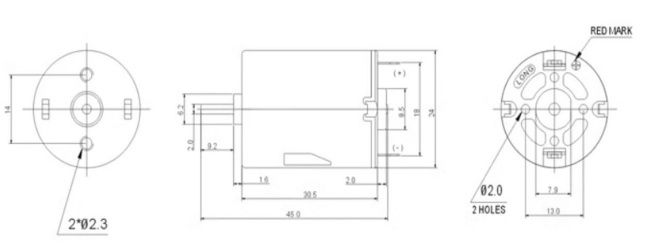

| Size | 24.2±0.2mm*30.5mm |
| Torque(At maximium efficiency) | 170g.cm /Custom |
| Current(At maximium efficiency) | ≤1.5A/Custom |
| Speed | 6000RPM/ Or As You Request |
| Model | Voltage | No Load | RATED LOAD | Stall | |||||||||
| Operating range | Rated | Speed | Current | Speed | Current | Torque | Output | Efficiency | Torque | Current | |||
| VDC | RPM | A | RPM | A | mN.m | gf.cm | W | % | mN.m | gf.cm | A | ||
| RC-280SA-2865 | 4.9 - 9.0 | 6 | 14000 | 0.28 | 11910 | 1.6 | 4.46 | 45.5 | 5.56 | 58.0 | 29.9 | 305 | 9.1 |
| RC-280SA-20120 | 4.5 - 12.0 | 9 | 11300 | 0.14 | 9540 | 0.76 | 4.06 | 41.3 | 4.04 | 59.1 | 26 | 265 | 4.1 |
| RC-280SA-2485 | 4.5 - 9.6 | 6 | 10800 | 0.18 | 9130 | 0.99 | 3.71 | 37.8 | 3.54 | 59.6 | 24 | 245 | 5.4 |
| RE-280SA-2295 | 3.0 - 6.0 | 6 | 9600 | 0.14 | 8150 | 0.78 | 3.27 | 33.3 | 2.79 | 59.5 | 21.6 | 220 | 4.4 |
| RE-280SA-2865 | 1.5 - 4.5 | 3 | 7100 | 0.16 | 6000 | 0.88 | 2.58 | 26.3 | 1.62 | 61.36 | 12.7 | 129 | 4.7 |
| RE-280RA-2865 | 1.5 – 3.0 | 3 | 9200 | 0.16 | 7770 | 0.87 | 1.98 | 20.2 | 1.61 | 61.7 | 12.65 | 129 | 4.7 |
| RC-280SA-2769 | 3.0-6.0 | 6 | 14000 | 0.236 | 11948 | 1.374 | 4.31 | 44 | 5.40 | 65.5 | 29.40 | 299.9 | 8 |
Above all mini motor parameter are available customisation upon your request Note:1mNm= 1Ncm = 10.2gcm | |||||||||||||
Thank you for choosing our micro DC motors! To ensure the safe and efficient delivery of every precision motor, we have established a standardized packaging and shipping system with flexible customization options:
1. Multi-Layer Protective Packaging
Core Protection: Each motor is individually packed in an anti-vibration foam-lined inner box, effectively absorbing shocks while preventing moisture and static damage.
Reinforced Outer Carton: Heavy-duty 5-ply corrugated cartons (standard size: 30×20×15cm) with reinforced edges, supporting up to 25kg load capacity.
Optional Upgrades: Additional safeguards including EPE foam/air column cushioning, waterproof film sealing, and more.
2. Customizable Solutions
√ Carton Customization: Logo printing and size adjustments (minimum order quantity: 50
units).
√ Pallet Services: Euro/US standard wooden pallets (120×80×15cm), with a maximum
load capacity of 1.2 tons per pallet.
√ Special Labels: Fragile, "This Side Up," custom shipping marks, and other warning
indicators.
3. Global Logistics Network
Domestic Delivery: 48-hour guaranteed delivery to major cities via SF Express, Deppon Logistics, or JD Logistics.
International Shipping: DHL/FedEx dedicated routes with DDP/DDU customs clearance support.
Bulk Orders: Full-container sea freight or China-Europe rail services, equipped with real-time temperature/humidity monitoring.
Our Commitment:
▶ Same-day dispatch for orders placed before 17:00 (GMT+8).
▶ Free packaging design consultation.
▶ Zero-delay replacement for transit damage.
▶ Real-time tracking updates for all shipments.
For shipping quotes or customized packaging solutions, contact our logistics team at +86 136-3159-9864. Trust us to safeguard your micro motors from warehouse to destination!
.
|
|
